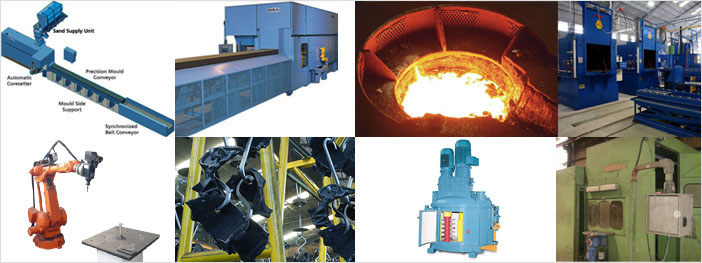

Primary Manufacturing Equipment Pictures
Equipment List
| Description | Size | |
|---|---|---|
| 1 | AUTO MOLDING LINE | 850*650*500 |
| 2 | GREEN SAND MIXER | 100T |
| 3 | HIGHT FREQUENCY FURNACE | 2T |
| 4 | HIGHT FREQUENCY FURNACE | 600KG |
| 5 | SHOT BLAST MACHINE | Y TYPE |
| 6 | SHOT BLAST MACHINE | CYCLING TYPE |
| 7 | SHOT BLAST MACHINE | SUPER |
| 8 | CNC GRINDING DEVICE | MSB 1055 |
| 9 | CNC GRINDING DEVICE | IRB 4400 |
| 10 | UBQA FURNACE | 900*1000*900( 1.5T ) |
Quality

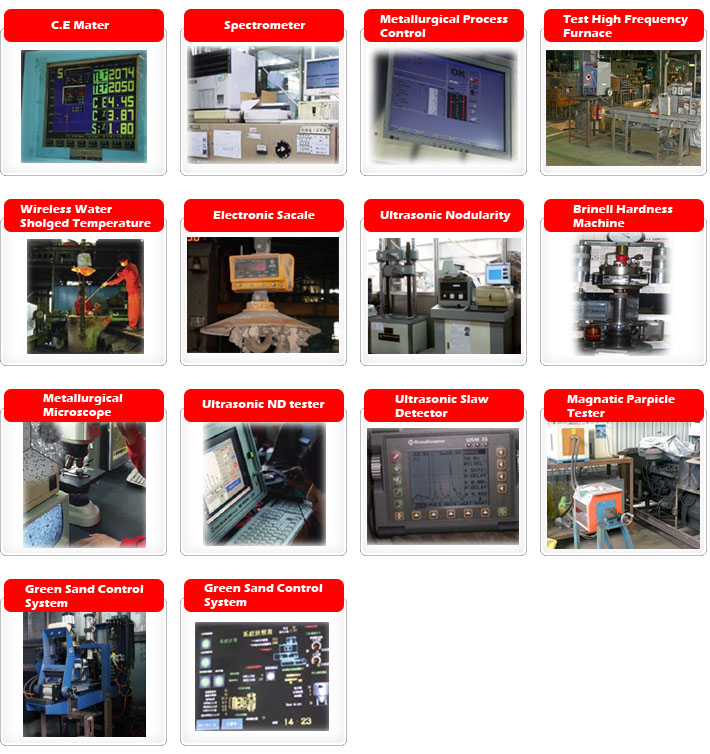

Quality Control and Inspection Equipment Pictures
Equipment List
| Description | Brand Name | Size | |
|---|---|---|---|
| 1 | C.E. Mater | Sound Cast | - |
| 2 | Spectrometer | ARL | 3460 |
| 3 | ATAS Metallurgical Process Control | NOVACAST | - |
| 4 | Small High Frequency Furnace | FIVE POWER | 10 KG |
| 5 | Waterishloged Temperature | HERAEVS | - |
| 6 | Wireless Waterisholged Temperature | HERAEVS | - |
| 7 | Electronic Scale | CHUNG-HSIN | 2Ton |
| 8 | Universal Test Machine | HUNG-TA | 30 Ton |
| 9 | Brinell Hardness Machine | N.S.S. | 3000 KG |
| 10 | Metallurgical Microscope | NIKON | - |
| 11 | Ultrasonic Nodularity Tester | KUSAKA | ND –Tester 21D |
| 12 | Ultrasonic Slaw Detector | KUSAKA | USM-35X |
| 13 | Magnatic Parpicle Tester | KUSAKA | GWH 40 |
| 14 | Green Sand On-Line System | GREEN SAND CONTROL SYSTEM | - |
| 15 | Sand test machine | DISA | 1 set |
Heat treatment

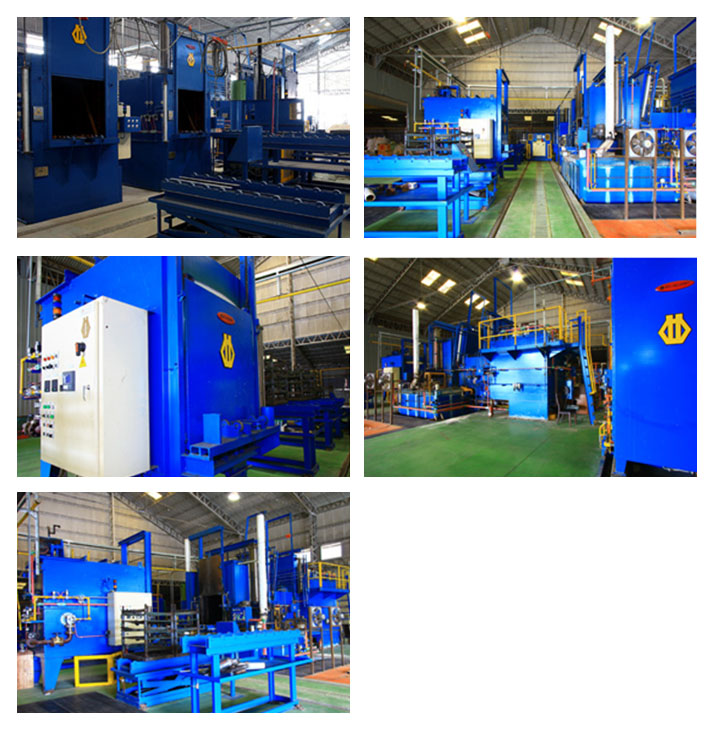

Austempering Heat Treatment Furnac

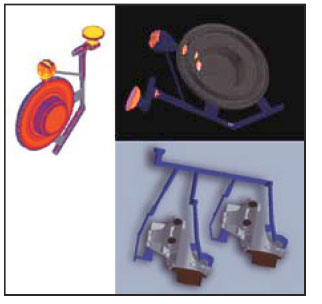

R & D
Usually, the demandof the customer is our motivation and the guideline, so our company researches and discuss e s the requirements from the customers at every moment. And for the purpose of achieving the diverse demands of the customers, we also do the discussion with the academic circle, Taiwan National Metal Center, and the relevant research centers, like in Japan, USA… and so on.
Material

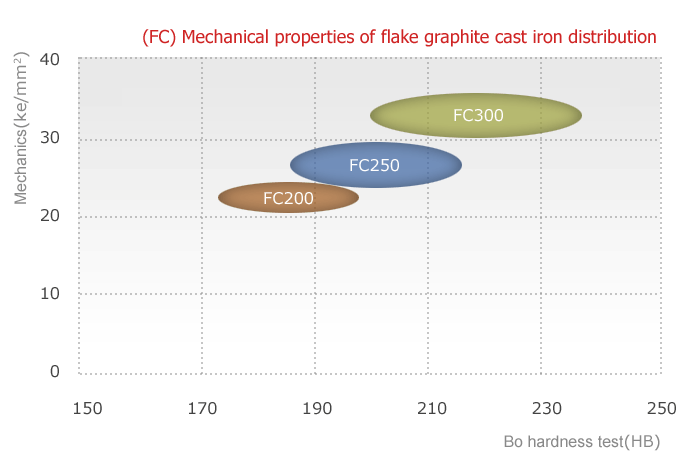

GRAY IRON(FC)

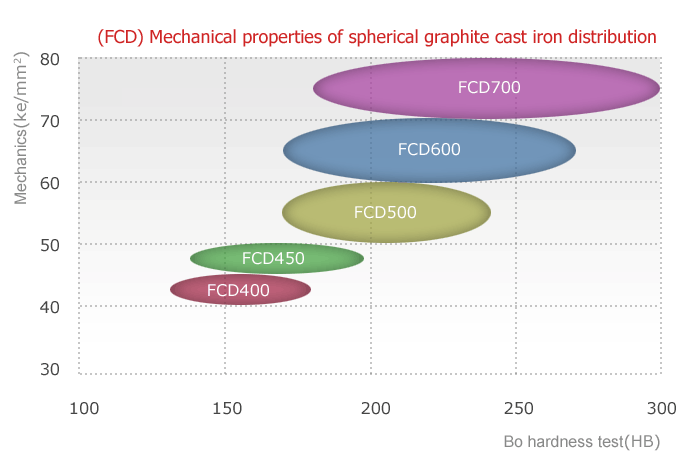

DUCTILE IRON(FCD)

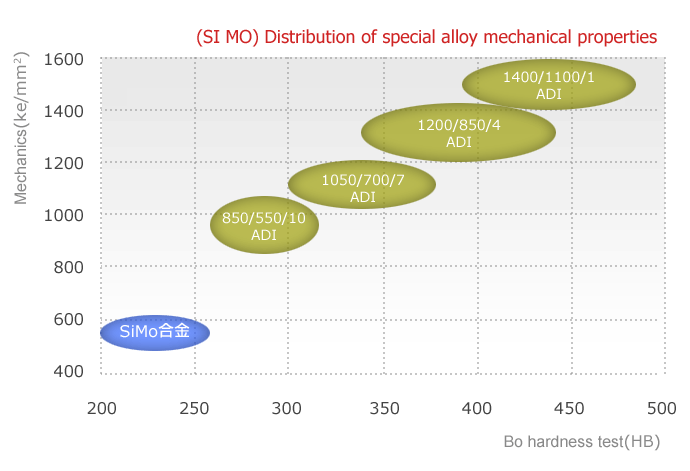

AUSTEMPERED DUCTILE IRON(ADI)
| JAPAN | JIS G 5501 | FC200 | FC250 | FC300 | FC350 |
|---|---|---|---|---|---|
| AMERICA | ASTM A-48 | 20/25 | 30/35 | 40/45 | 55/50 |
| EUROPE | DIN 1562 | EN-GJL-200 | EN-GJL-250 | EN-GJL-300 | EN-GJL-350 |
| ISO | R 185 | 200 | 250 | 300 | 350 |
| TAIWAN | CNS | FC200 | FC250 | FC300 | FC350 |
| JAPAN | JIS G 5521 | FCD400-18 | FCD400-15 | FCD450-10 | FCD500-7 | FCD600-2 | FCD700-2 | FCD800-2 |
|---|---|---|---|---|---|---|---|---|
| AMERICA | ASTM A-536 | 60-40-18 | 60-40-15 | 65-45-12 | 80-55-6 | - | 100-70-3 | 120-90-2 |
| EUROPE | DIN 1532 | EN-GJS-400-18(U) | EN-GJS 400-15U | EN-GJS 450-10U | EN-GJS 500-7U | EN-GJS 600-3U | EN-GJS 700-2U | EN-GJS 800-2U |
| ISO | 1083 | FCD400-18 | FCD400-15 | FCD450-10 | FCD500-7 | FCD600-2 | FCD700-2 | FCD800-2 |
| TAIWAN | CNS 2869 | FCD400-18 | FCD400-15 | FCD450-10 | FCD500-7 | FCD600-2 | FCD700-2 | FCD800-2 |
| JAPAN | JIS G5503 | - | FCAD 900-8 | FCAD 1000-5 | FCAD 1200-2 | FCAD 1400-1 | - |
|---|---|---|---|---|---|---|---|
| AMERICA | ASTM A897 | 750-500-11 | 900-650-09 | 1050-750-07 | 1200-850-04 | 1400-1100-02 | 1600-1300-01 |
| EUROPE | EN 1564 | EN-GJS-800-8 | EN-GJS-900-7 | EN-GJS-1050-5 | EN-GJS-1200-3 | EN-GJS-1400-1 | - |
| ISO | 17804 | JS/800-10 | JS/900-8 | JS/1050-6 | JS/1200-3 | JS/1400-1 | - |
| TAIWAN | CNS 13098 | - | FCD900A | FCD1000A | FCD1200A | - | - |
